Stone Crusher Cheap Ep Conveyor Belt Small Sand Mining Coal Mine Polyester Rubber Conveyor Belt
Description
Basic Info.
| Inside Material | Nylon |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Wear-Resistant |
| Tensile Strength | Strong |
| Color | Green, Blue, Black, White |
| Transport Package | Wooden Case, Pallet, Carton, etc |
| Trademark | SINOCONVE |
| Origin | China |
Product Description
Product Description
SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.
Quality control
Step 1: Raw material inspection FAQ
Q1. Are you a manufactuer?
Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.
Q2. What about the lead time?
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
Q3. How to pay?
1) T/T or L/C through bank account
2) Select Trade Assurance Service
Q4. How about package?
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
Property
-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation
Manufacturing standards
GB/T 7984
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490
Specification| Specification | ||
| Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA | DIN-X,Y,W RMA-1,RMA-2 N17,M24 |
| Belt width (mm) | 500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500 | 18",20",24",30",36",40",42" 48",60",72",78",86",94" |
| Tensile strength | EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6 | 330PIW, 440PIW |
| Top+Bottom thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5 | 3/16"+1/16", 1/4"+1/16" |
| Belt thickness | 3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm | |
| Belt length | 10m,20m,50m,100m,200m,250m,300m,500m | |
| Belt edge type | moulded(sealed) edge or cut edge | |
Rubber compound test EP fabric test
Moving die rheometer analyzes the characteristics of Rubber Compound Tensile strength test and elongation test when broken.

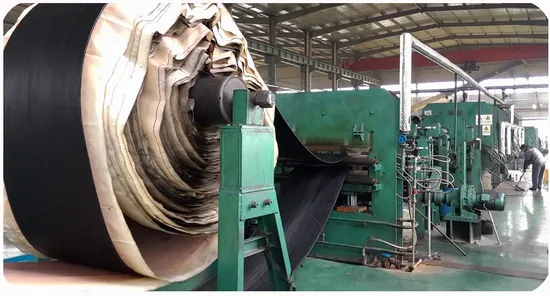

Step 2: Advance equipment to guarantee quality from the details Calender process Forming process
4 rollers celender machine is able to stick rubber on both The forming tension is even between different plies,which
side of the fabric in one time.This can reduce the strength can avoid wrinkled fabric and guarantee an even thickness
loss of the rubber during the process. of belt core.
Step 3:Finished belts inspection
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our facto.
Company Information
Length and surface inspection
Thickness inspection
WIdth inspection
